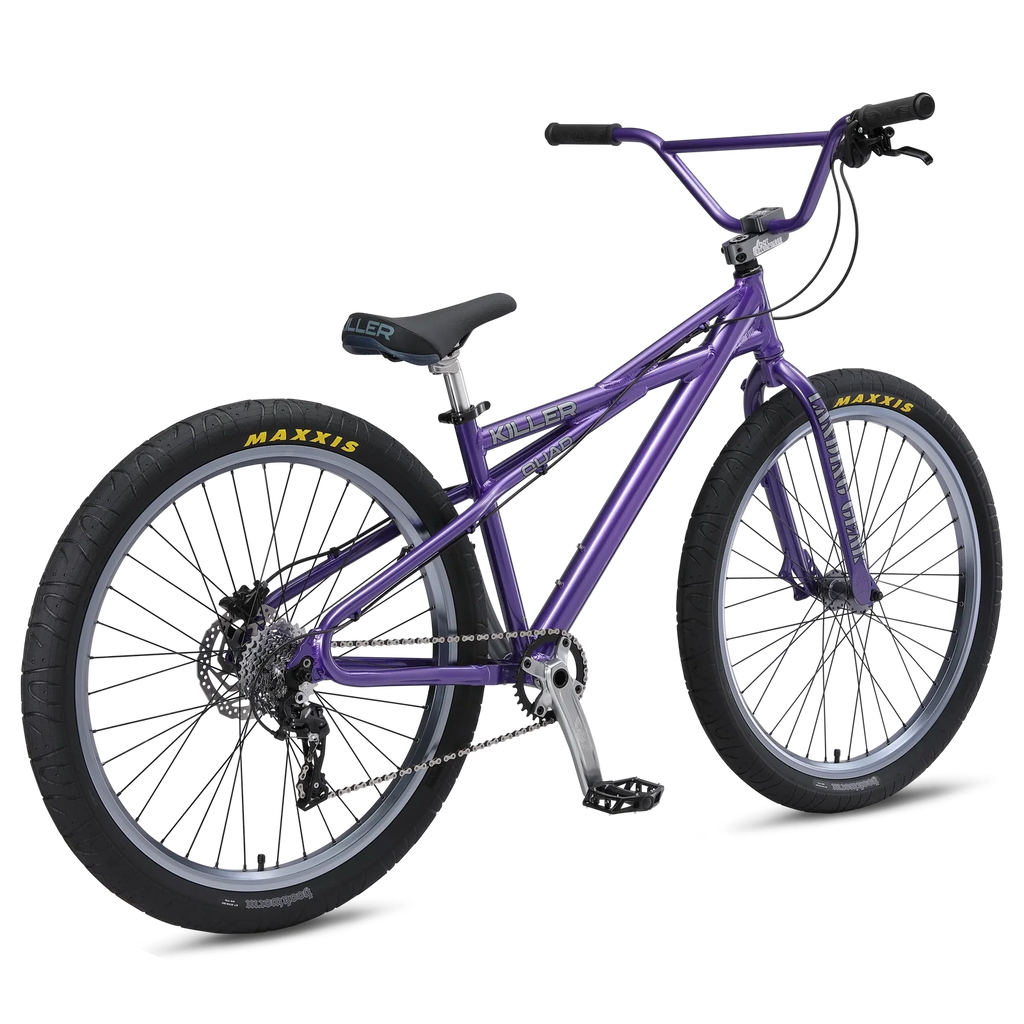

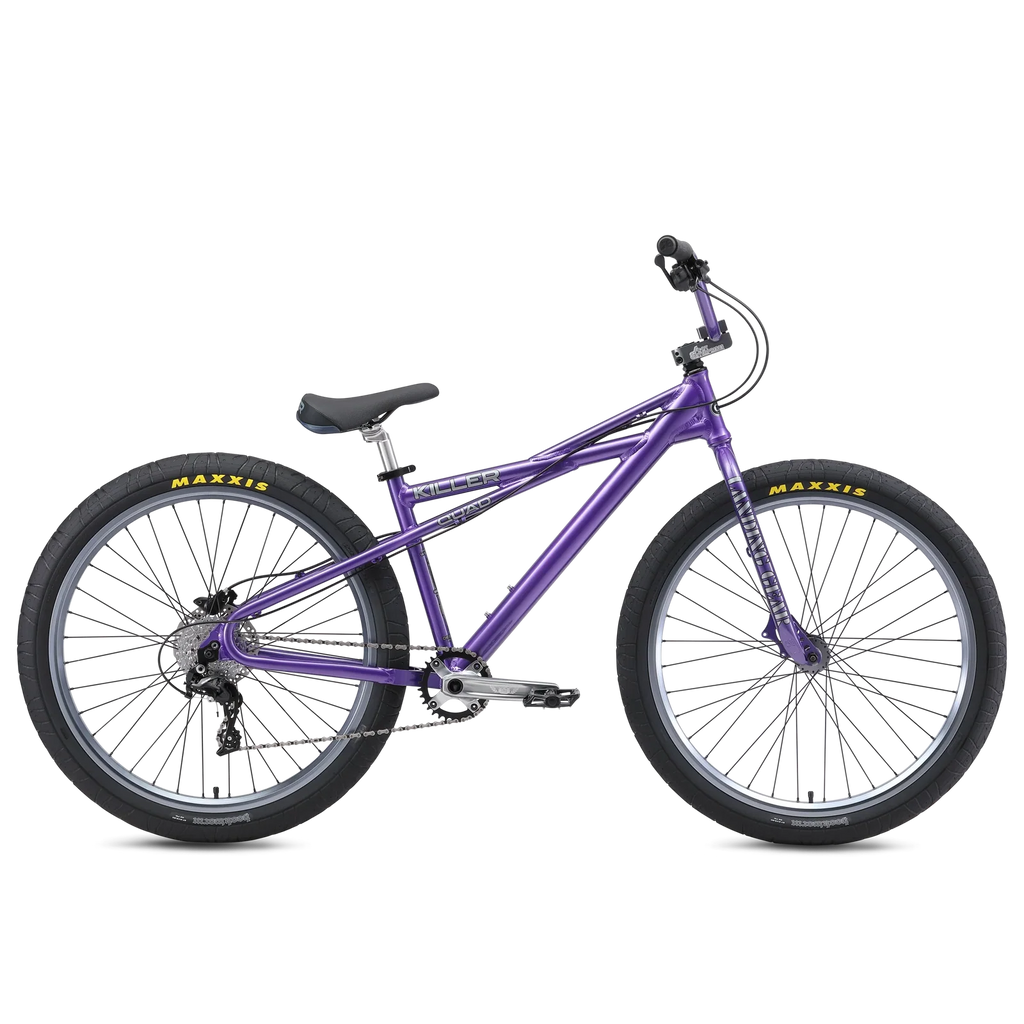

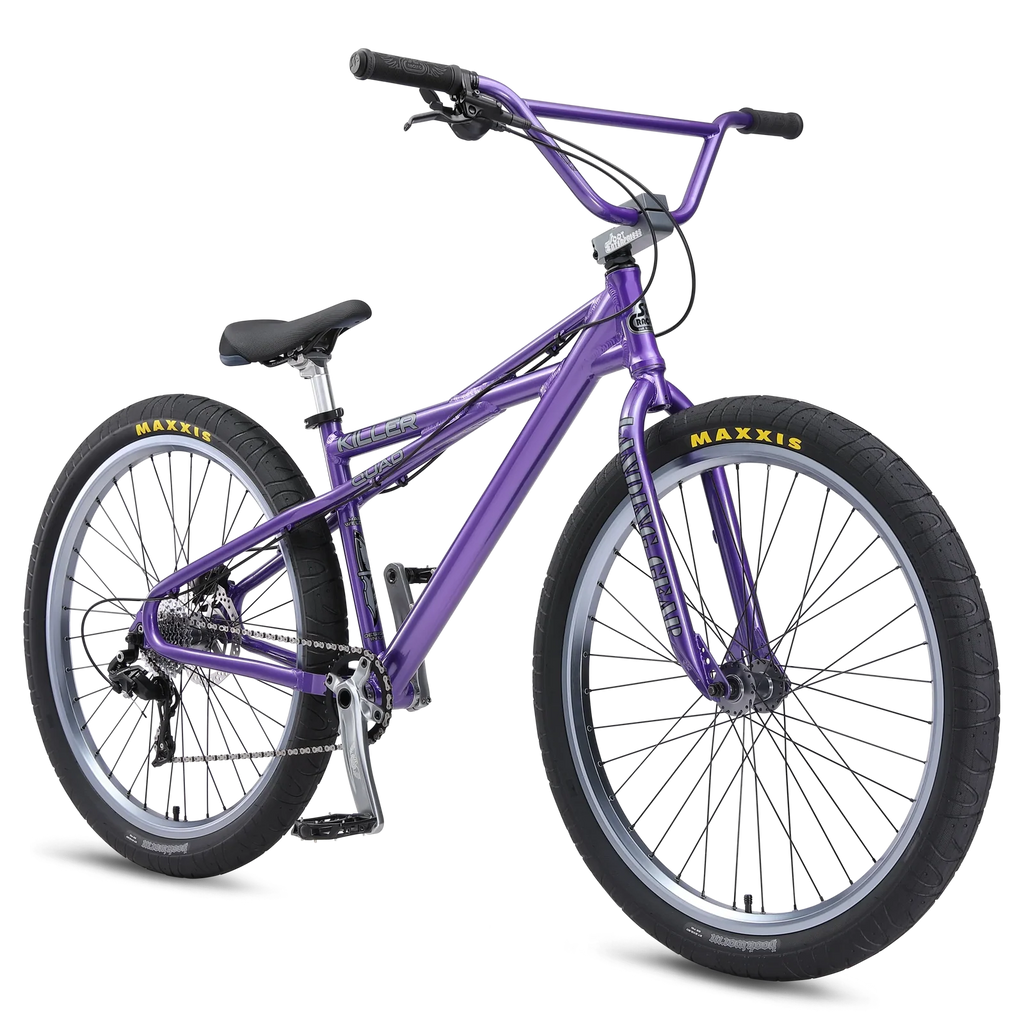

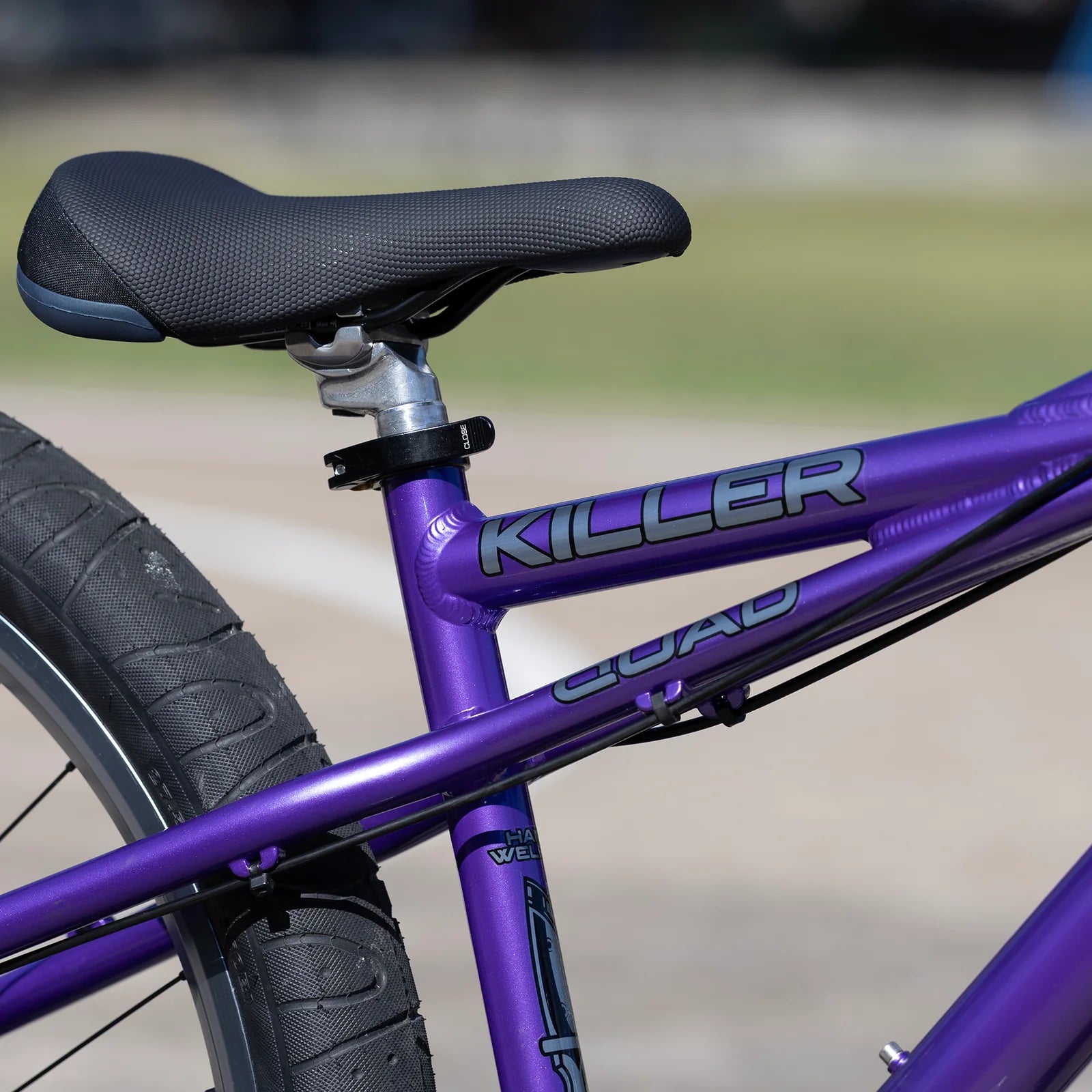

SE KILLER QUAD 27.5 PURPLE MAJESTY
SE KILLER QUAD 27.5 PURPLE MAJESTY
The 27.5" Killer Quad is back, and it's a testament to a legendary SE Quadangle frame design. The Killer Quad is equipped with a smooth Microshift 1x10 drivetrain, giving you a wide range of gears for every session. The Shimano MT200 hydraulic disc brake provide all the stopping power you need. New for this year, the double-wall rims and sealed bearing hubs roll on 27.5" x 2.5" Maxxis Hookworm tires for a secure grip and smooth roll. The flangeless Mushroom Wing grips will keep your hands comfortable, and the new SE Captive seat provides a secure and comfortable feel. The bike is finished off with a quick-release seat clamp for easy adjustments, and water bottle mounts were also added to the frame this year.
Frame
6061 Aluminum, Single Downtube Killer Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Fixed Dropouts, Water Bottle Mounts, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts, Disc Brake Tabs, Removable Derailleur Hanger
Fork
Landing Gear, Full Cr-Mo, 419mm Axle to Crown, 29mm Offset, 110mm Spaced Dropouts

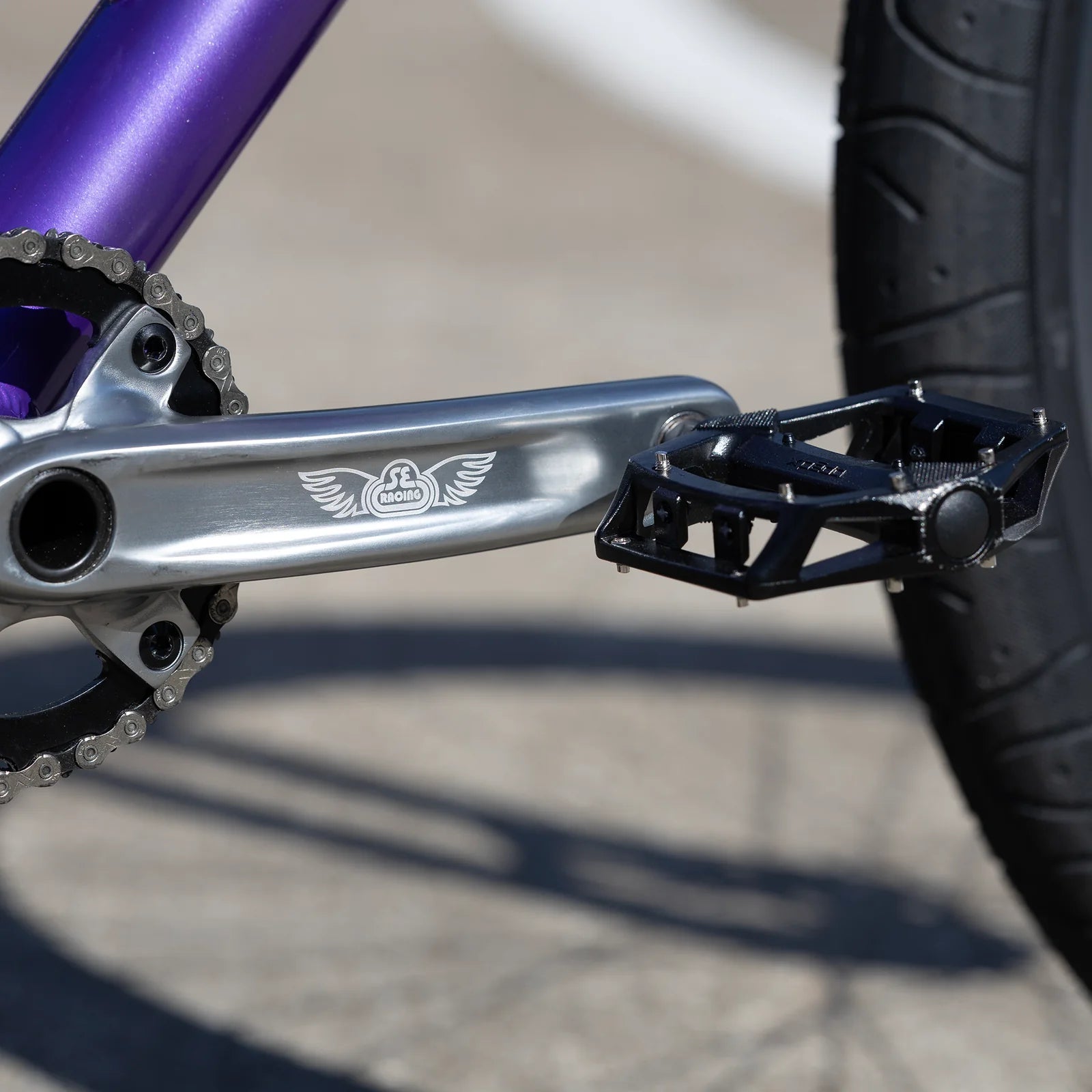

Crankset
SE Racing 170mm Forged Alloy 2-pc Cranks, Pedal Boss Inserts, 32T Narrow/Wide Alloy Chainring, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle
Pedals
X-Pedo Low-profile Platform w/ Removable Pins
Rear Derailleur
MicroShift XLE RD-M61S, 1x10, Short Cage
Shifters
MicroShift XLE Xpress SL-M850-R, 1x10, Sealed Bearing, Alloy Lever
Cassette
MicroShift XLE CS-H100, 10-speed, 11-32T
Chain
KMC X10
Wheelset
Sealed Bearing Alloy 36H Nutted Hubs, 135mm Rear Hub, 110mm Front Hub, Double-wall Rims w/ Metal Eyelets, 11-32T 10-speed Cassette, Stainless Spokes

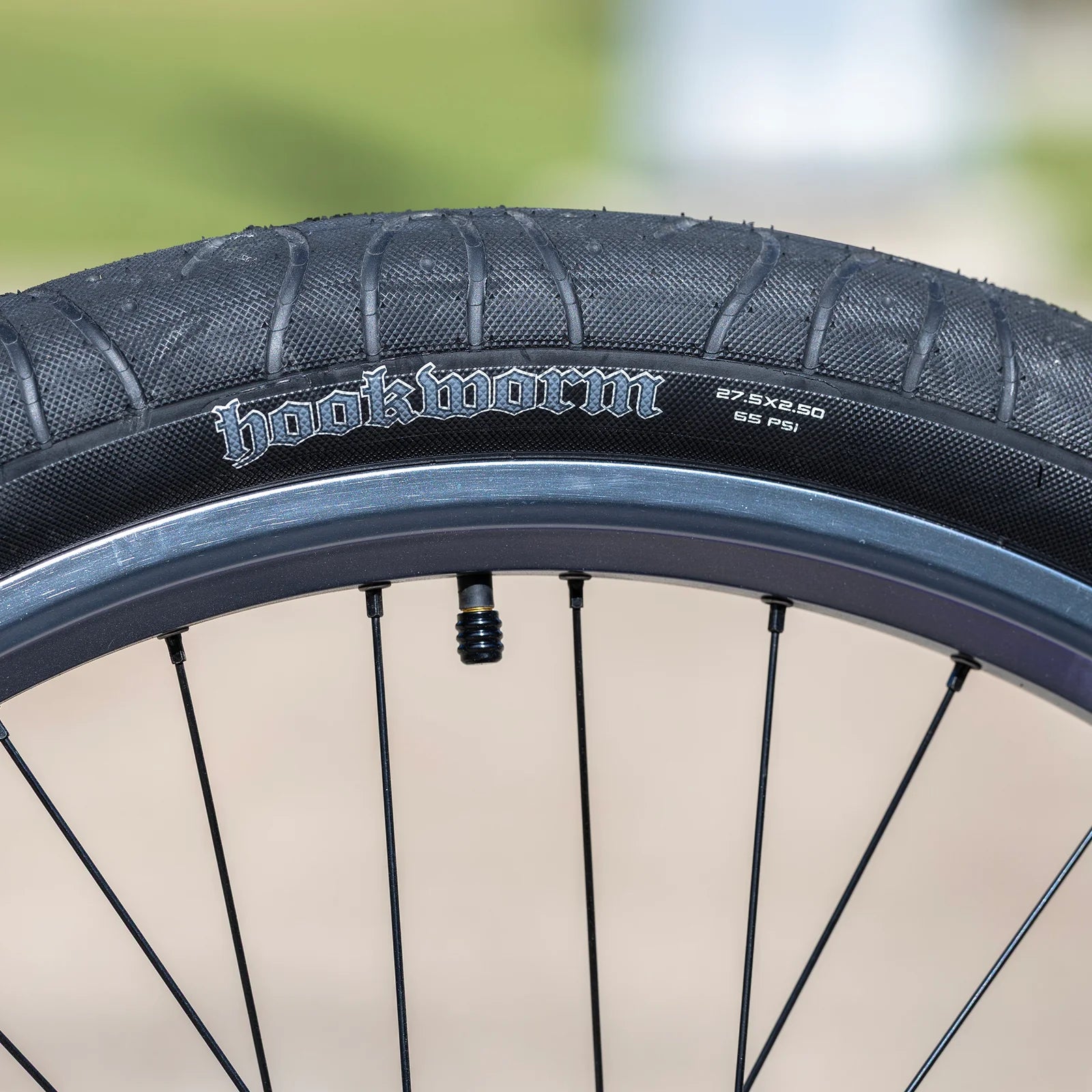

Tires
Maxxis Hookworm, 60TPI, 27.5" x 2.5" Front & Rear

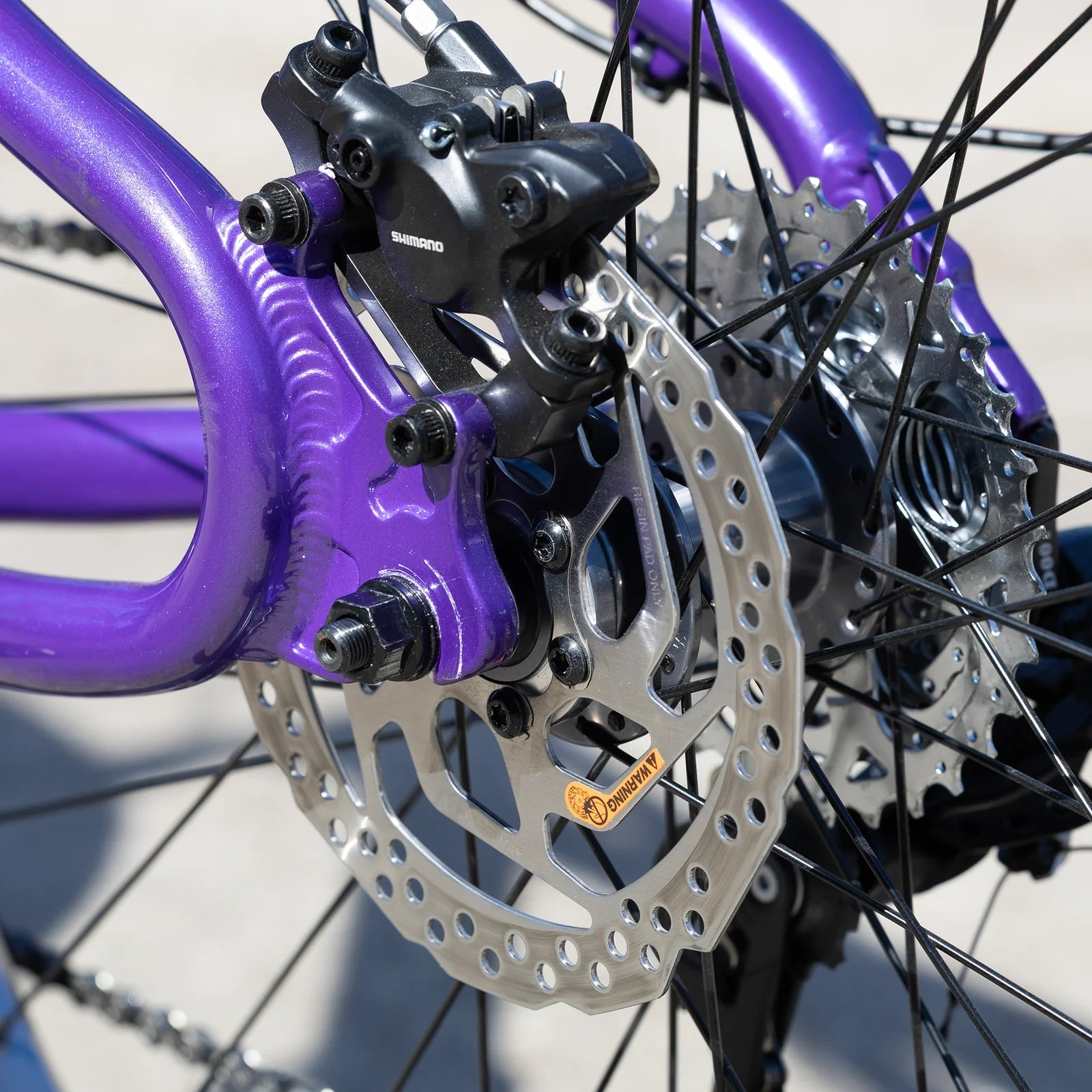

Brakeset
Shimano MT200, Hydraulic Disc, Dual Piston, One Way Bleeding, 160mm Rotor, Rear Only
Brake Levers
Shimano MT200, 2/3-Finger, Mineral Oil, Funnel Bleeding, Rear Only
Headset
FSA Sealed Bearing, Integrated, Orbit CE, 1-1/8"
Handlebar
Big Honkin' Cr-Mo Cruiser Bar, 31" x 7", 12° Backsweep, 2° Upsweep
Stem
Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach

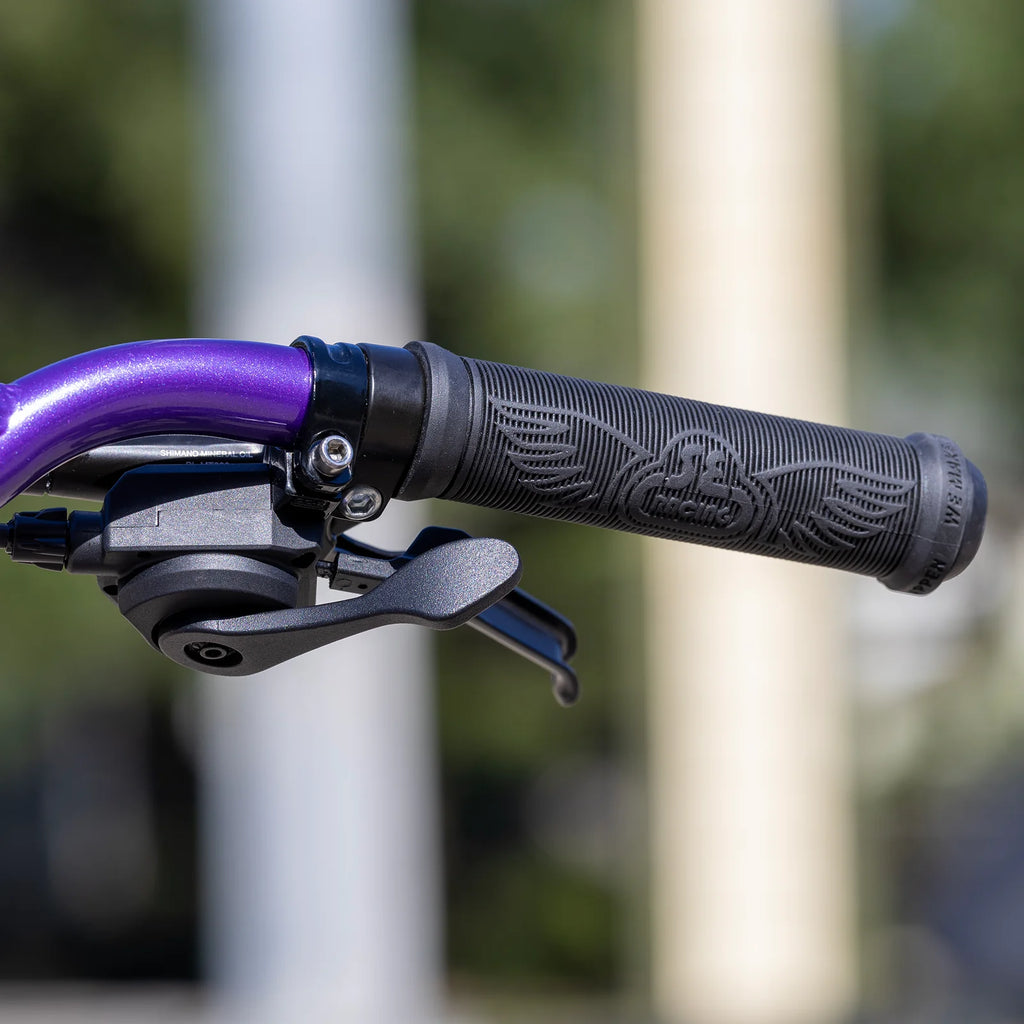

Grips
SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs
Seat
New SE Captive Seat, Concave Design for Ultimate Hold & Comfort, w/ Custom SE Bottle Opener Brace
Seatpost
Micro-Adjust Alloy, 27.2mm
Seat Clamp
Quick Release Clamp, Alloy, 31.8mm Inner Diameter
Accessories
Alloy Valve Caps, Water Bottle Mounts, Removable Derailleur Hanger
Wheel Size
27.5"
A
Top Tube, Actual
22.8"
B
Seat Tube, Center To Top
15.7"
C
Seat Tube Angle
73°
D
Head Tube Angle
71°
E
Chainstay Length
17.4"
F
Wheelbase
42.3"
G
Bottom Bracket Height
11.9"
H
Standover
28.2"
Stem
55mm
Handlebar Width
31"
Crank
170mm
Wheel Size
27.5"
Seat Post Diameter
27.2mm
